Product Overview

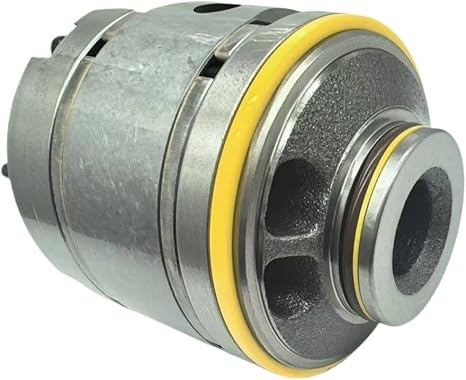

The 3G2749 (or 3G-2749) 8 Gallon Vane Pump Cartridge is a high-quality replacement component engineered for optimal performance in Caterpillar hydraulic systems. Specifically designed for models like the CAT D300B and D250B Articulated Dump Trucks, this cartridge is crucial for maintaining efficient hydraulic flow and pressure, ensuring your heavy machinery operates at its peak.

Constructed with durable materials and precision manufacturing, it guarantees reliability and extended service life in demanding environments. This cartridge group is built to meet or exceed OEM specifications, providing a cost-effective solution without compromising on quality.

Key Product Parameters

• Part Numbers: 3G2749, 3G-2749

• Flow Rate: 8 GPM (Gallons Per Minute)

• Rotation: Left Hand Rotation (without bushing)

• Weight: Approximately 5.2 pounds (2.36 kg)

• Typical Dimensions: Approx. 18 x 18 x 12 inches (Package)

• Designed for: High-pressure (up to 3000-3500 PSI) and high-speed (up to 2700 RPM) operation

Advantages and Selling Points

• Exceptional Durability: Manufactured from high-grade materials for prolonged operational life even under harsh conditions.

• Optimized Performance: Ensures consistent hydraulic pressure and flow, vital for the precise control and power delivery of heavy equipment.

• Direct Fit Replacement: Engineered to perfectly match the specifications of Caterpillar D300B and D250B hydraulic systems, simplifying installation.

• Cost-Effective Solution: Provides a reliable alternative to OEM parts, helping to reduce maintenance costs without sacrificing quality.

• Quality Assurance: Backed by rigorous testing and quality control processes to ensure dependable performance.

Applicable Equipment and Application Scenarios

This 3G2749 Vane Pump Cartridge is primarily designed for Caterpillar Articulated Dump Trucks:

• Caterpillar D300B Articulated Truck

• Caterpillar D250B Articulated Truck

Application Scenarios:

Articulated Dump Trucks like the D300B and D250B are workhorses in various demanding industries, relying heavily on their hydraulic systems for critical functions such as steering, braking, and body dumping. The 3G2749 vane pump cartridge is integral to these operations, ensuring smooth and powerful hydraulic response.

• Construction Sites: Hauling aggregates, soil, and debris for large-scale infrastructure projects, road construction, and commercial developments.

• Mining Operations: Transporting overburden and mined materials in surface mining and quarry environments.

• Waste Management: Moving large volumes of waste in landfills and recycling facilities.

• Landscaping and Earthmoving: Large-scale earthmoving tasks, including site preparation and land reclamation.

Case Study Analysis:

In environments where efficiency and uptime are paramount, a reliable hydraulic system is non-negotiable. For instance, a mining operation utilizing CAT D300B trucks benefits significantly from robust hydraulic components. A properly functioning 3G2749 vane pump cartridge ensures swift and precise control of the dump body, reducing cycle times and increasing material moved per shift. Any hydraulic system downtime, even minor, can lead to substantial financial losses due to halted operations and delayed project timelines. By using high-quality replacement parts like the 3G2749, operators can minimize unexpected breakdowns, enhance fleet availability, and achieve higher productivity targets, contributing directly to improved profitability and operational efficiency.

Related and Similar Products

Beyond the 3G2749, other Caterpillar hydraulic vane pump cartridges offer varying flow rates and are compatible with a wide range of equipment. These cartridges often belong to the same Vickers VQ/VQH series, known for their interchangeable nature and robust design. Here are a few examples:

• 1U2664 (20 Series): Commonly found in Scrapers and Compactors like CAT 631C, 633D, 637, 639D, and Wheel Dozers like 824B.

• 1U2666 (25 Series): Used in Articulated Trucks such as D350E, D400E, and Track-Type Tractors like D8L, D9N.

• 1U2667 (35 Series): Applicable to Wheel Loaders including 966D, 966F, 966F II, 970F, and Underground Mining Loaders like R1600, R1600G, R1600H.

• 1U2669 (38 Series): Found in Earthmoving Compactors like 826C, 825C, Wheel Bulldozers such as 824C, and various Tracked Tractors (e.g., D8L, D9N).

• 3G1266 (30 Series): Utilized in various heavy equipment, including Track-Type Loaders like 955H and Tractors like D5.

These cartridges, like the 3G2749, ensure the precise control and power transmission required for the respective equipment's functions, from loading and hauling to dozing and compacting.

Installation and Maintenance: Common Issues & Solutions

Proper installation and regular maintenance are crucial for the longevity and optimal performance of any hydraulic vane pump cartridge. Here are common issues and their solutions:

Common Problems:

• Pump Does Not Draw Fluid (Loss of Prime): Often caused by low fluid levels, air ingress in suction lines, blocked filters, or restricted suction.

• Reduced Flow & Pressure: Can indicate pump wear, restricted suction or discharge, improper vane installation, incorrect rotation direction, or a faulty relief valve.

• Noisy Pump (Whining/Grinding): Typically a sign of low inlet pressure, cavitation, high pump speed, or worn/misaligned internal components.

• Contaminated Hydraulic Fluid: Particles, water, or chemical impurities can accelerate wear and lead to internal leaks.

• Overheating: Low reservoir fluid, internal leaks, or clogged heat exchangers can cause excessive temperatures, degrading fluid and components.

• Loose Fasteners: Can lead to vibrations, misalignment, and premature wear of the pump and its components.

Solutions:

• Regular Fluid Checks: Monitor hydraulic fluid level and quality regularly. Ensure it is clean and free from contaminants. Change fluid according to manufacturer's schedule.

• Filter Maintenance: Routinely inspect, clean, or replace hydraulic filters to prevent debris from circulating and damaging the pump.

• Inspect for Wear: Periodically inspect vanes and other internal components for signs of wear, chips, or abnormal patterns. Replace worn parts promptly.

• Check Connections and Seals: Ensure all hose connections, fittings, and seals are tight and free from leaks. Air ingress can lead to cavitation.

• Verify Installation: Always ensure the cartridge is installed correctly, with the proper direction of rotation, and all fasteners are tightened to specification.

• Monitor System Pressure and Temperature: Regularly check hydraulic system pressure gauges and temperatures to ensure they are within operating limits. Address any deviations immediately.

• Cleanliness: Maintain a clean working environment during installation and maintenance to prevent contamination. Thoroughly clean internal components if a repair is needed.

For more high-quality aftermarket parts and detailed specifications, please visit our website.
