Product Advantages and Selling Points

• Enhanced Performance: Designed for higher pressure (up to 3500 PSI for VQH) and higher speed operation, thanks to an optimized rotor design that significantly enhances pressure capabilities.

• Increased Stability & Longevity: Features a hydraulic balancing structure within intra-vane pumps, reducing pressure on the stator and leading to more stable performance and extended service life.

• Low Noise Operation: The twelve-vane system ensures low-amplitude flow pulsation, resulting in a quieter operating hydraulic system.

• Flexible Operation: Offers various displacement options and shaft configurations with four different outlet positions, providing greater operational flexibility.

• Ease of Maintenance: The cartridge is designed to be independent of the drive shaft, allowing for convenient field servicing and flow capacity changes without needing to remove the entire pump from its mounting.

• High Reliability: Manufactured by Costex Tractor Parts (CTP), known for quality and value, ensuring reliable operation under demanding conditions.

Applicable Equipment & Application Scenarios

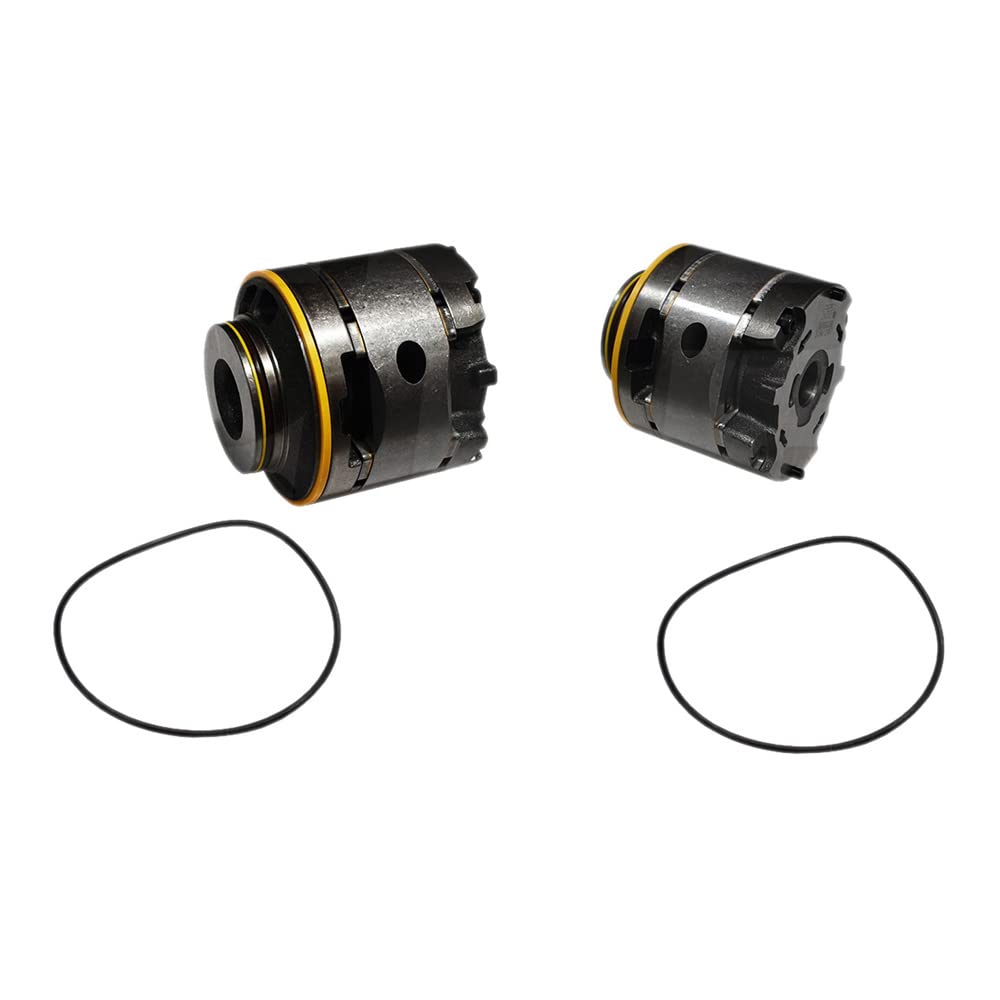

The CTP 3G2835 35 VQ Series Cartridge is specifically tailored for models 772, 773, 824C, and 826C Hydraulic Vane Pumps. These pumps and their cartridges are critical components in a wide array of heavy-duty machinery across various industries.

Case Study Example: Heavy Excavator Operation

In a large-scale infrastructure project, hydraulic excavators equipped with 772, 773, 824C, or 826C models of vane pumps rely on the CTP 3G2835 cartridge for their boom, arm, and bucket movements. The 30 GPM flow rate ensures rapid response times for digging and loading cycles, while the high-pressure capability supports handling dense materials. The cartridge's design allows for quick field replacement, minimizing downtime and maximizing productivity, a crucial factor in meeting project deadlines.

Related Similar Products

Beyond the 3G2835, Costex Tractor Parts (CTP) and other manufacturers offer a range of VQ series hydraulic vane pump cartridges with varying specifications to meet diverse application requirements. These cartridges are fundamental to the operation of numerous heavy machinery models.

• 20VQ Series Cartridges: Available in various GPM ratings (e.g., 8, 11, 14 GPM) and rotation options (RH/LH). Commonly found in smaller construction equipment, compact utility machines, and auxiliary hydraulic circuits.

• 25VQ Series Cartridges: Offered with displacements like 17, 19, 21 GPM, and different bushing configurations. Applicable in medium-sized loaders, agricultural machinery, and industrial presses.

• 35VQ Series (other displacements): Beyond 3G2835, options like 3G2834 (25 GPM) and 3G2837 (35 GPM) with varying rotations are used in a broader range of heavy equipment requiring moderate to high flow rates.

• 45VQ Series Cartridges: Providing higher flow rates (e.g., 42, 50, 60 GPM), these are utilized in very large excavators, mining trucks, and specialized industrial applications demanding maximum hydraulic power.

• Double Vane Pump Cartridges (e.g., 2520VQ, 3520VQ, 4535VQ): These combine two cartridges into a single pump body, offering multiple independent flow circuits for complex hydraulic systems found in multi-functional heavy equipment.

Installation & Maintenance: Common Issues and Solutions

Proper installation and regular maintenance are crucial for the longevity and efficient operation of hydraulic vane pump cartridges. Here are some common issues and their effective solutions:

Always refer to the manufacturer's specific guidelines and maintenance manuals for detailed instructions and safety precautions for your particular equipment model.
