Product Overview

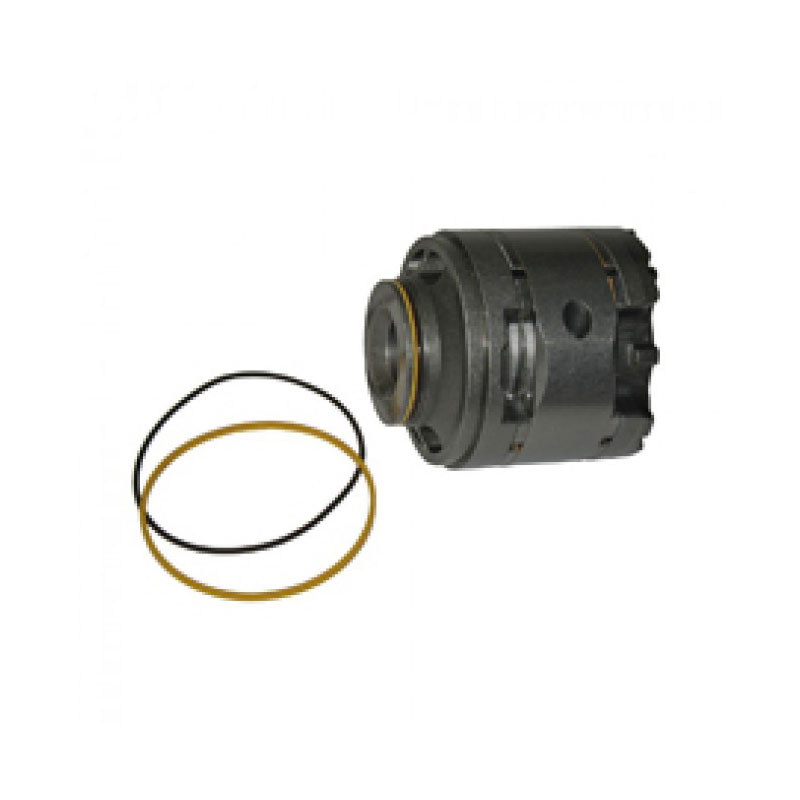

The Caterpillar Vane Pump Cartridge, part number 3G7656, is a critical component designed to deliver reliable and efficient hydraulic power for a wide range of Caterpillar heavy machinery. Engineered for demanding operating conditions, this cartridge ensures consistent fluid flow and pressure, which are vital for the optimal performance of your equipment's hydraulic systems.

Key Product Parameters:

• Part Number: 3G7656

• VQ Series: 45

• Flow Rate (GPM): 50 (Gallons Per Minute)

• Rotation: RH (Right Hand Rotation)

• Bushing: Yes

• Rated Speed: Up to 2700 RPM

• Rated Pressure: Up to 3000 psi

• Approximate Weight: 9.71 kg (21.40 lbs)

• Approximate Package Dimensions: 45.72 x 45.72 x 30.48 cm (18 x 18 x 12 inches)

Product Advantages and Selling Points:

• High Efficiency: Designed for high volumetric efficiency, ensuring maximum fluid displacement with minimal energy loss, which translates to reduced operating costs.

• Smooth and Quiet Operation: The balanced design and continuous fluid flow contribute to remarkably low noise levels, ideal for various working environments.

• Exceptional Durability and Reliability: Features self-compensating vanes that maintain consistent performance and efficiency over extended periods, built to withstand harsh conditions and prolonged use.

• OEM Quality & Precision: Manufactured to meet rigorous USA specifications and subjected to stringent quality control at ISO 9001 certified facilities, guaranteeing an exact fit and superior performance.

• Easy Maintenance: The cartridge design allows for quick and straightforward replacement of internal components, significantly minimizing downtime and maintenance expenses.

• Versatile Fluid Compatibility: Capable of handling a wide range of fluid viscosities, enhancing its adaptability across diverse hydraulic applications.

• Precise Control: Delivers consistent and powerful hydraulic flow with accurate pressure regulation, enabling precise control of machine movements.

Applicable Equipment:

This 3G7656 Vane Pump Cartridge is suitable for various Caterpillar engines and heavy equipment, including but not limited to:

• Engines: CAT 3306, 3406, 3406B, 3406C, 3406E, C15

• Tractors/Scrapers: Caterpillar 977L, 621B, 621E, 621F, 621G, 627B, 627E, 627F, 627G

• And other Caterpillar equipment requiring hydraulic vane pump systems.

Application Scenarios and Case Analysis

Caterpillar equipment powered by this hydraulic vane pump cartridge operates across a multitude of challenging industries, providing essential power for hydraulic functions such as lifting, steering, and material handling.

Common Application Scenarios:

• Construction: Used in loaders and tractors for heavy material transport (e.g., rock, rubble), digging foundations, loading dump trucks, and general site cleanup.

• Earthmoving: Essential for tasks like demolition, land grading, and agricultural operations requiring precise movement of large volumes of earth.

• Landscaping: Facilitates the movement and spreading of various landscaping materials (soil, mulch) and ground clearing/leveling tasks.

• Waste Management: Critical for efficiently loading and moving municipal, industrial, and agricultural waste into disposal trucks and managing stockpiles.

• Mining and Quarrying: Powers heavy machinery involved in loading and hauling minerals, creating and maintaining vast stockpiles, and maintaining site infrastructure.

• Road Construction: Integral to machinery transporting construction materials, loading haul trucks, handling bulk loads, and precise spreading/grading of aggregates for road surfaces.

Case Study: Road Construction Efficiency

Consider a large-scale highway construction project utilizing Caterpillar 621G Wheel Tractor-Scrapers. The 3G7656 vane pump cartridge plays a pivotal role in these machines by ensuring consistent and powerful hydraulic pressure for critical functions like bowl lift, apron control, and ejector operation. During a typical earthmoving cycle, the pump's high efficiency allows for rapid and smooth actuation of these hydraulic cylinders, optimizing the loading and unloading process. This reliable hydraulic power contributes directly to reduced cycle times per load, improved fuel efficiency, and ultimately, a significant increase in overall project productivity and cost-effectiveness. The cartridge's durability minimizes unexpected breakdowns, ensuring continuous operation in a demanding, high-volume environment.

Related and Similar Products

In addition to the 3G7656, Caterpillar offers a range of hydraulic vane pump cartridges and components designed for various applications and equipment models. These related products share the same commitment to quality and performance, ensuring your Caterpillar machinery maintains its operational integrity.

Examples of Similar Vane Pump Cartridges:

• 3G7657: Another common vane pump cartridge, often found in various Caterpillar loaders and heavy equipment, providing hydraulic power for similar functions.

• 1U0532: A cartridge used in some Caterpillar models, offering specific flow rates and pressure capabilities tailored to different machine requirements.

• 1364815: Part of the VQ series, this cartridge is designed for particular hydraulic pump configurations within Caterpillar machinery.

• 1002870: This cartridge is also applicable across different Caterpillar equipment, including certain tractors and excavators, ensuring consistent hydraulic system performance.

• Other Cartridges: Caterpillar's hydraulic system includes many other cartridges, such as 3G1266, 3G2237, 3G2801, 4T2626, and more, each suited for specific pump models and equipment series.

These similar products are broadly applicable to a range of Caterpillar heavy equipment, including excavators, loaders, dozers, motor graders, and articulated trucks, depending on the specific hydraulic pump model and system requirements. Always refer to your equipment's parts manual for exact compatibility.

Installation & Maintenance: Common Issues and Solutions

Proper installation and regular maintenance are crucial for the longevity and efficient operation of your hydraulic vane pump cartridge. Addressing common issues proactively can prevent costly downtime and extend the lifespan of your equipment.

Common Problems & Solutions:

• Pump Not Drawing Fluid (Priming Issues):

• Problem: Low fluid level, clogged suction filter, air ingress, incorrect rotation, worn vanes.

• Solution: Check and top up hydraulic fluid, clean or replace suction filter, inspect all connections for air leaks, verify pump rotation direction, inspect and replace worn vanes.

• Reduced Flow and Pressure:

• Problem: Worn pump components (vanes/rotor), restricted suction/discharge lines, incorrect relief valve setting, low pump speed.

• Solution: Inspect internal pump components for wear and replace if necessary, clear any blockages in hydraulic lines, adjust relief valve to specifications, verify pump speed.

• Noisy Pump (Whining, Knocking):

• Problem: Cavitation (air bubbles), aeration (air in fluid), low inlet pressure, contamination, high pump speed.

• Solution: Ensure adequate fluid level and quality, check for leaks that allow air entry, clean suction strainer, verify operating parameters and pump speed.

• Overheating:

• Problem: Insufficient fluid cooling, stuck relief valves, undersized pump, fluid leaks.

• Solution: Inspect and clean hydraulic cooler, check relief valve operation, ensure proper pump sizing for the system, repair leaks.

• Contamination or Poor Fluid Quality:

• Problem: Dirt/debris in oil, water contamination, wrong fluid type/viscosity.

• Solution: Regularly check fluid for cleanliness (should be clear, not milky or foamy), ensure proper filtration, change hydraulic fluid according to manufacturer's schedule, use correct fluid type and viscosity.

General Maintenance Tips: Always perform visual inspections for wear, leaks, and damage. Ensure all mounting bolts and brackets are securely fastened. Refer to your Caterpillar equipment's service manual for specific maintenance schedules and procedures.
