Product Overview

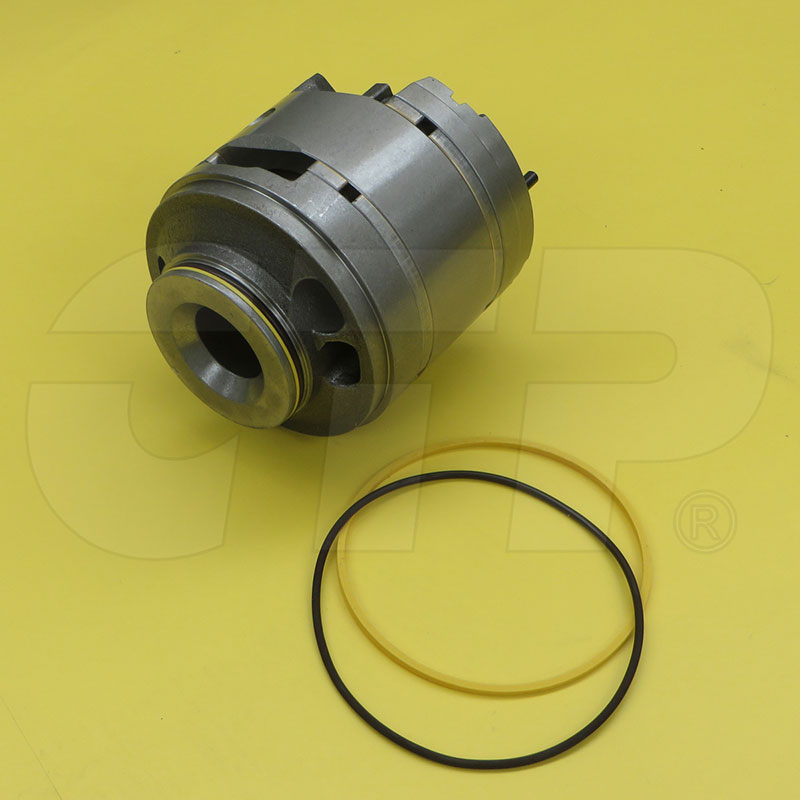

The Caterpillar Vane Pump Cartridge, part number 3G7661, is a critical component designed to deliver reliable hydraulic power within Caterpillar machinery. Engineered for durability and high performance, this cartridge ensures the efficient operation of the hydraulic system, maintaining optimal flow and pressure for demanding applications in heavy-duty equipment.

As an essential part of the vane pump assembly, the 3G7661 cartridge is responsible for converting mechanical energy into hydraulic energy, enabling smooth and responsive control of various machine functions. Its robust construction is built to withstand the rigorous conditions typically encountered in construction, mining, and other industrial environments.

Product Parameters

• Part Number: 3G7661

• Type: Vane Pump Cartridge

• Dimensions (Approx.): 18 cm x 16 cm x 16 cm

• Weight (Approx.): 10 kg

• Manufacturer: Caterpillar (Aftermarket/Replacement)

• Function: Core component for hydraulic fluid circulation and pressure generation.

Note: Specific technical parameters such as flow rate and pressure ratings may vary based on the specific pump assembly and application. Please refer to your equipment's service manual for precise specifications.

Key Advantages and Selling Points

• Reliable Hydraulic Performance: Ensures consistent and efficient hydraulic power, critical for the smooth operation of heavy machinery.

• Durability: Built with high-quality materials to withstand high pressures, temperatures, and demanding operational environments, extending service life.

• Smooth Operation & Low Noise: Vane pump designs are known for their quiet and stable operation, contributing to a better working environment and reduced wear on associated components.

• Volumetric Efficiency: Designed to maintain high volumetric efficiency, ensuring maximum fluid displacement and minimizing energy loss.

• Hydraulically Balanced Design: Modern vane pump cartridges often feature a hydraulically balanced design that minimizes internal loads on bearings, enhancing pump longevity and reliability.

• Cost-Effective Replacement: Provides a high-quality aftermarket solution for maintaining Caterpillar equipment without compromising performance.

Applicable Equipment and Application Scenarios

The 3G7661 Vane Pump Cartridge is primarily suited for various Caterpillar heavy-duty machines, ensuring their hydraulic systems operate effectively. Key applicable equipment includes:

• Caterpillar 615 Wheel Tractor-Scraper

• Caterpillar 615C Wheel Tractor-Scraper

• Caterpillar 615C II Wheel Tractor-Scraper

• Other Non-Road Mobile Machinery: Including various excavators, mine loaders, and similar heavy construction or mining equipment that utilize vane hydraulic pumps.

Application Scenarios and Case Analysis:

These machines, especially the 615 series Wheel Tractor-Scrapers, are crucial in large-scale earthmoving operations. The 3G7661 cartridge plays a vital role in their hydraulic systems, which power essential functions such as:

• Steering Systems: Providing precise and responsive control, particularly in demanding terrains or confined spaces on job sites.

• Braking Systems: Ensuring reliable and powerful braking for safety and control, especially when carrying heavy loads or operating on inclines.

• Implement Control: Powering the scraper bowl's lifting, lowering, and ejecting mechanisms, which are essential for efficient material handling.

• Power Train Auxiliaries: Supporting various auxiliary hydraulic functions within the power train for optimal machine performance.

Case Example (Earthmoving Operations): In a large highway construction project, a Caterpillar 615C II scraper equipped with a properly functioning 3G7661 vane pump cartridge is essential for continuous operation. The hydraulic system, powered by this cartridge, enables the operator to swiftly load and unload soil, grade surfaces, and maneuver the heavy machine effectively. A failing pump cartridge would lead to decreased steering responsiveness, reduced scraper efficiency, or even complete machine downtime, significantly impacting project timelines and costs. Regular maintenance and timely replacement of components like the 3G7661 ensure maximum uptime and operational efficiency in such critical applications.

Related and Similar Products

Beyond the 3G7661, Caterpillar and aftermarket manufacturers offer a range of vane pump cartridges that serve similar functions across various models of heavy equipment. These cartridges are designed with similar principles but differ in size, flow capacity, and specific fitment.

Other Common Caterpillar Vane Pump Cartridge Part Numbers:

• 3G1268: Often found in Caterpillar 955K Track Loaders and other similar loaders.

• 3G1266, 3G2239, 3G2806: These and many other part numbers (e.g., 1002870, 3G7662, 3G7663, 1U3953) represent a family of vane pump cartridges used across various Caterpillar heavy equipment, including but not limited to wheel loaders, motor graders, and articulated trucks. Their specific applications depend on the hydraulic system's design and requirements for flow and pressure.

General Vane Pump Cartridges (Examples from other manufacturers):

• Vickers V/VQ Series: Commonly used in industrial machinery, mobile equipment, and power units, known for their modular design.

• Parker Denison T6/T7 Series: Widely applied in construction, marine, and agricultural machinery for their robust performance.

• Tokyo Keiki SQP Series: Found in various industrial hydraulic systems, offering low noise and high efficiency.

Installation and Maintenance: Common Issues & Solutions

Proper installation and regular maintenance are crucial for maximizing the lifespan and performance of your vane pump cartridge. Here are common issues and their solutions:

Common Issues:

• Reduced Flow or Pressure: Often caused by internal wear of vanes or cam ring, fluid contamination, or cavitation.

• Excessive Noise (Whining, Rattling): Can indicate cavitation (air in the system), fluid contamination, bearing failure, or loose internal components.

• Overheating: Low reservoir fluid levels, obstructions in the heat exchanger, internal leaks, or incorrect fluid viscosity.

• Seal Failure/Leaks: Primarily due to old or damaged seals, improper installation, or excessive pressure/temperature.

• Premature Wear/Bearing Failure: Often a result of fluid contamination, improper lubrication, or misalignment during installation.

Solutions & Best Practices:

• Fluid Management:

• Ensure hydraulic fluid is clean and free from contamination. Contamination is a leading cause of pump failure.

• Use the correct type and viscosity of hydraulic fluid as specified by the manufacturer.

• Maintain proper fluid levels in the reservoir to prevent cavitation and overheating.

• Proper Installation:

• Always follow the manufacturer's installation guidelines meticulously.

• Ensure correct alignment of the pump with the drive shaft to prevent bearing and seal issues.

• Properly fill and bleed the hydraulic system after installation to remove air, preventing cavitation.

• Test the pump after installation, checking for leaks, unusual vibrations, or overheating.

• Regular Inspections & Preventative Maintenance:

• Inspect the hydraulic system regularly for leaks, damage, and unusual noises.

• Check the vanes for damage and measure their width every 3,000 operating hours or at least annually, replacing the cartridge if necessary.

• Monitor system pressure and flow against recommended parameters.

• Perform scheduled fluid and filter changes.

• Troubleshooting:

• For noise, check for air ingress (cavitation), fluid level, and filter condition.

• For overheating, ensure adequate cooling, check fluid levels, and inspect for internal leaks.

• For reduced performance, consider internal wear and contamination as primary suspects.

Always consult your equipment's service manual or a qualified hydraulic technician for specific troubleshooting and repair procedures.
