Product Overview

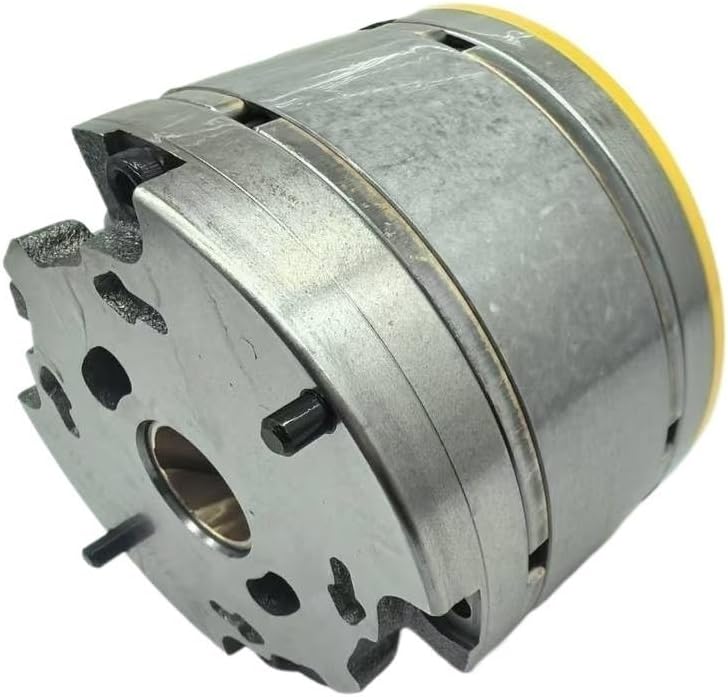

The 3K7943 (3K-7943) Vane Cartridge is a high-quality, 47-gallon hydraulic pump component specifically engineered for various Caterpillar (CAT) off-road machinery. This crucial part is designed to restore optimal hydraulic performance, ensuring your heavy equipment operates at peak efficiency and reliability. Manufactured to precise specifications, it offers a perfect fit and dependable operation, minimizing downtime and maximizing productivity on demanding job sites.

Product Parameters

• Part Number: 3K7943, 3K-7943

• Capacity: 47 Gallons (Hydraulic Pump Vane Cartridge)

• Type: Vane Cartridge

• Compatibility: Caterpillar (CAT) Off-Road Machinery

• Material: High-grade, durable alloys for extended lifespan and resistance to wear.

• Function: Restores and maintains efficient hydraulic pressure and flow.

Key Advantages and Selling Points

• Optimized Performance: Engineered to meet or exceed OEM specifications, ensuring your hydraulic system performs at its best.

• Extended Durability: Constructed from robust materials resistant to wear and tear, providing a longer service life even in harsh operating conditions.

• Precise Fit: Designed for direct replacement, simplifying installation and reducing potential for errors.

• Cost-Effective Solution: A reliable alternative to costly full pump replacements, saving you money without compromising quality.

• Enhanced Productivity: Restores efficient hydraulic power, leading to improved operational speed and overall productivity of your machinery.

Applicable Equipment

The 3K-7943 Vane Cartridge is suitable for a wide range of Caterpillar off-road machinery that utilizes a 47-gallon hydraulic pump. This includes, but is not limited to, various models of:

• Caterpillar Wheel Loaders

• Caterpillar Articulated Trucks

• Caterpillar Scrapers

• Caterpillar Compactors

• Other CAT heavy equipment with compatible hydraulic pump systems.

Application Scenarios and Case Analysis

This hydraulic pump vane cartridge is essential for maintaining the operational integrity of CAT off-road machinery in demanding environments. Here are some typical application scenarios and a brief case analysis:

• Construction Sites: In large-scale construction projects, CAT wheel loaders are used for material handling and excavation. A failing hydraulic pump can significantly slow down operations. Replacing the vane cartridge 3K-7943 quickly restores the loader's lifting and steering capabilities, minimizing project delays.
  Case Study: A construction company experienced reduced lift capacity on their CAT 980H Wheel Loader. Diagnostic checks indicated wear in the hydraulic pump's vane cartridge. Upon replacing it with the 3K-7943, the loader's hydraulic system returned to full operational efficiency, allowing them to resume heavy material loading without further issues.

• Mining Operations: Articulated trucks are vital for transporting excavated materials in mines. Consistent hydraulic power is crucial for steering, braking, and dumping mechanisms.
  Case Study: A mining company reported sluggish steering and delayed dumping on their CAT 740B Articulated Truck. Investigation revealed a worn 3K-7943 cartridge. The prompt replacement ensured the truck's continuous and safe operation, preventing costly production interruptions in the high-volume mining environment.

• Road Building and Earthmoving: Scrapers and compactors rely on robust hydraulic systems for precise grading and compaction.
  Case Study: During a road construction project, a CAT 637G Scraper showed signs of hydraulic system inefficiency, affecting its ability to accurately level terrain. The issue was traced to a worn vane cartridge. Installing a new 3K-7943 restored the scraper's hydraulic precision, leading to faster and more accurate grading work.

Related Products

To ensure comprehensive hydraulic system maintenance and repair, consider these related products often used in conjunction with or as alternatives for various CAT machinery:

• Other Vane Cartridges (various capacities): For different pump sizes and machinery models. Applicable to a wider range of CAT excavators, dozers, and motor graders.

• Hydraulic Pump Seal Kits: Essential for preventing leaks and maintaining hydraulic pressure. Applicable to almost all CAT hydraulic systems.

• Hydraulic Filters: Crucial for maintaining fluid cleanliness and extending the life of hydraulic components. Universally applicable to all CAT machinery with hydraulic systems.

• Complete Hydraulic Pumps: When the damage is beyond a simple cartridge replacement, a full pump unit may be necessary. Applicable to severe hydraulic system failures across various CAT models.

Common Installation & Maintenance Issues and Solutions

Proper installation and regular maintenance are key to the longevity and performance of your hydraulic pump vane cartridge. Here are common issues and their solutions:

• Issue: Reduced Hydraulic Pressure or Flow After Installation.
  Solution:

• Verify correct cartridge orientation and seating.

• Check for air in the hydraulic system; bleed air if necessary.

• Inspect all hydraulic lines for blockages or leaks.

• Ensure the hydraulic fluid level is correct and clean.

• Issue: Premature Wear of the Vane Cartridge.
  Solution:

• Regularly change hydraulic filters to prevent contamination.

• Use the correct type and grade of hydraulic fluid as specified by CAT.

• Avoid operating machinery beyond its rated capacity, which can overstress the hydraulic system.

• Issue: Unusual Noises (Whining, Grinding) from the Pump.
  Solution:

• Inspect for cavitation caused by restricted inlet lines or low fluid levels.

• Check for misaligned pump or motor connections.

• Ensure mounting bolts are properly torqued.

• Issue: Hydraulic Fluid Leakage.
  Solution:

• Replace worn or damaged seals and O-rings around the cartridge and pump housing.

• Ensure all fittings are properly tightened.

• Inspect for cracks in the pump casing.
