Product Introduction

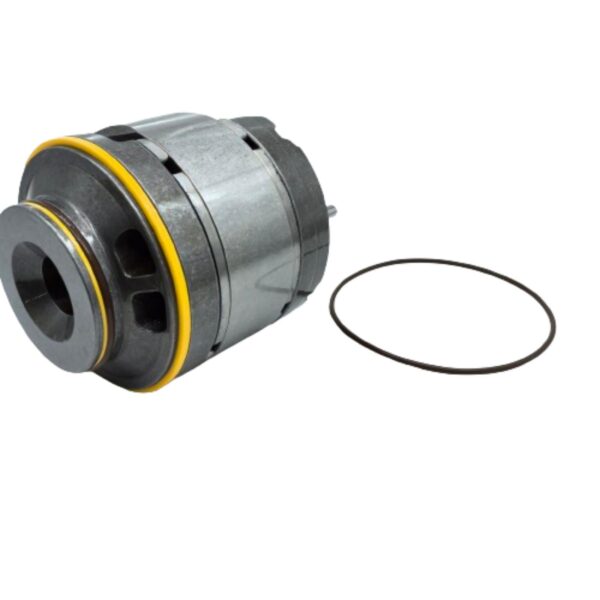

The 4J1401 (4J-1401) 60 Gallon Hydraulic Pump Cartridge is a high-quality aftermarket spare part engineered for demanding off-road and heavy-duty applications. Designed as a direct replacement for original equipment, this hydraulic pump cartridge is crucial for maintaining the efficiency and reliability of hydraulic systems in various heavy machinery. Manufactured with precision and durable materials, it ensures stable and efficient hydraulic power, minimizing downtime and maximizing productivity.

Product Parameters

• Part Number: 4J1401, 4J-1401

• Part Name: 60 Gallon Hydraulic Pump Cartridge

• Material: Cast/Ductile Iron, Steel

• Type: Vane Pump Spare Parts, Cartridge Kits

• Weight: Approximately 10 kg

• Single Package Size: 18 x 15.5 x 15.5 cm

• Warranty: 1 Year (Manufacturer's Warranty)

Product Advantages & Selling Points

• Durable Construction: Built to withstand heavy-duty use and harsh operating environments, ensuring long-lasting performance.

• Precise Engineering: Designed to meet stringent specifications for optimal performance and compatibility.

• Easy Installation: A direct replacement for worn or damaged pump cartridges, facilitating quick and efficient installation.

• High Performance: Delivers stable and efficient hydraulic power, crucial for smooth operation and responsiveness of heavy machinery.

• Temperature & Pressure Resilience: Capable of withstanding extreme pressure and temperature variations common in demanding applications.

• Minimizes Downtime: Reliable operation reduces unexpected failures, leading to less maintenance time and increased operational hours.

Applicable Equipment

This 60 Gallon Hydraulic Pump Cartridge (4J1401 / 4J-1401) is primarily designed for:

• Caterpillar (CAT) Off-Highway Trucks: Essential for the hydraulic systems controlling various functions in large mining and construction trucks.

• Construction & Building Machinery: Including excavators, wheel loaders, and dozers where high hydraulic power is required for operations.

• Engineering & Mining Equipment: Used in heavy-duty machinery for earthmoving, material handling, and other rigorous tasks.

This cartridge is a suitable replacement for Caterpillar CAT parts, commonly found in various CAT models.

Application Scenarios & Case Analysis

Hydraulic pump cartridges like the 4J1401 are at the heart of many heavy equipment hydraulic systems, enabling powerful and precise movements. Here are common scenarios where these devices are critical:

Mining Operations:

In large-scale mining, Caterpillar Off-Highway Trucks are crucial for transporting vast quantities of ore and overburden. The 4J1401 hydraulic pump cartridge plays a vital role in the truck's hydraulic systems, which control:

• Hoist and Braking Systems: Ensuring rapid and safe raising/lowering of the truck bed for dumping, and providing reliable braking power under heavy loads on steep inclines.

• Steering System: Enabling precise control and maneuverability of these massive vehicles in confined or challenging terrain.

• Suspension Cylinders: Absorbing shocks and vibrations, crucial for operator comfort and machine longevity on rugged mine roads.

Case Example: A large open-pit mine relies on a fleet of CAT Off-Highway Trucks for continuous material transport. A failing hydraulic pump cartridge in one of these trucks can lead to a significant loss of hoisting power, extended dump cycles, or even a complete shutdown of the vehicle, resulting in costly operational delays and reduced productivity. Replacing it with a durable 4J1401 ensures the truck maintains its full operational capacity, preventing bottlenecks in the mining process.

Quarry & Construction Sites:

In quarries and large construction projects, equipment like excavators, wheel loaders, and dozers operate in dynamic environments, handling heavy materials and performing intricate tasks. The hydraulic pump cartridge supports:

• Attachment Control: Providing hydraulic force for buckets, rippers, and other attachments, enabling digging, lifting, and pushing operations.

• Movement and Stability: Powering track or wheel drives and stabilization systems for effective machine movement and safe operation on uneven ground.

Case Example: On a highway construction project, a CAT excavator equipped with a 4J1401 hydraulic pump cartridge is tasked with trenching and loading debris. The continuous demands on its hydraulic system require a pump cartridge that can maintain consistent pressure and flow. If the cartridge experiences internal wear, the excavator's digging force might decrease, or its arm movements could become sluggish. A reliable 4J1401 cartridge ensures the excavator can operate at peak performance, adhering to tight project deadlines and reducing manual labor.

Related Similar Products

Beyond the 4J1401, other hydraulic pump cartridges are vital for various Caterpillar equipment, serving similar functions across different models and applications:

• 3G7664 (3G-7664) Hydraulic Pump Cartridge:

• Applicable to: Caterpillar CAT Excavator 235, Wheel Scrapers (e.g., 632E, 637E), Wheel Tractors (e.g., 621B, 621E, 621F, 621G, 623B, 623E, 627E, 627F, 627G), and engines like 3306, 3406, 3406B, 3406C, 3406E, C15.

• 9T1697 (9T-1697) Hydraulic Pump Cartridge:

• Applicable to: Caterpillar CAT Track-Type Loaders (e.g., 943, 953).

• Other common CAT Hydraulic Pump Cartridge part numbers:

• 1002961, 100-2961, 1003414, 1052155, 1287228.

• These cartridges are used across a wide range of CAT machinery, including various excavators, loaders, dozers, and graders, ensuring the hydraulic system's integrity and performance.

Installation & Maintenance: Common Issues & Solutions

Proper installation and regular maintenance are crucial for the longevity and optimal performance of any hydraulic pump cartridge. Here are common problems encountered and their solutions:

1. Noisy Operation (Cavitation/Aeration)

Problem: A loud, crackling, or high-pitched noise like marbles being pumped. This often indicates air in the hydraulic fluid (aeration) or a lack of fluid volume (cavitation).

Solution:

• Check Fluid Level: Ensure the reservoir fluid level is adequate and above the intake pipe opening. Low fluid is a primary cause.

• Inspect Suction Line: Look for cracks, loose connections, or restrictions in the suction line and fittings. Tighten all connections securely.

• Clean/Replace Filters: Clogged suction strainers or filters can restrict flow. Clean or replace them regularly.

• Bleed Air: Bleed air from the system if trapped air pockets are suspected.

2. Overheating

Problem: The hydraulic fluid or pump assembly becomes excessively hot.

Solution:

• Check Fluid Viscosity: Ensure the correct type and viscosity of hydraulic fluid are used. High viscosity can generate more heat.

• Inspect Cooling System: Check the heat exchanger and cooling mechanisms for blockages or malfunctions.

• Address Internal Leaks: Internal leaks can generate heat without contributing to work. Inspect pump and components for leaks.

• Verify Pressure Settings: Ensure relief valve settings are correct and not causing over-pressurization.

3. Reduced Flow Rate / Not Building Pressure

Problem: The system operates slowly, or the pump fails to generate sufficient pressure.

Solution:

• Inspect Pump Components: Check for worn internal pump components, such as vanes, cam rings, or side plates within the cartridge. Replace worn parts.

• Check Pressure Relief Valve: Ensure the pressure relief valve isn't stuck open or set too low.

• Fluid Contamination: Contaminated fluid can cause blockages and wear. Filter or change the hydraulic fluid regularly.

• Verify Rotation Direction: Ensure the pump is driven in the correct direction of rotation.

4. Fluid Leaks

Problem: Visible leaks from the pump, lines, or connections.

Solution:

• Replace Worn Seals: Inspect and replace worn or damaged O-rings, gaskets, and shaft seals (especially if leaking from the pump shaft).

• Tighten Fittings: Ensure all hydraulic line connections and fittings are properly tightened, but avoid overtightening which can damage threads.

• Inspect Hoses: Check hoses for cracks or damage, particularly near fittings. Replace as necessary.

General Maintenance Tips:

• Regular Fluid Analysis: Periodically analyze hydraulic fluid for contamination and degradation.

• Scheduled Filter Replacement: Adhere to manufacturer's recommendations for filter changes.

• Visual Inspections: Conduct daily visual checks for leaks, unusual noises, or vibrations.

• Proper Storage: Store spare cartridges in a clean, dry environment to prevent contamination.
