Product Overview

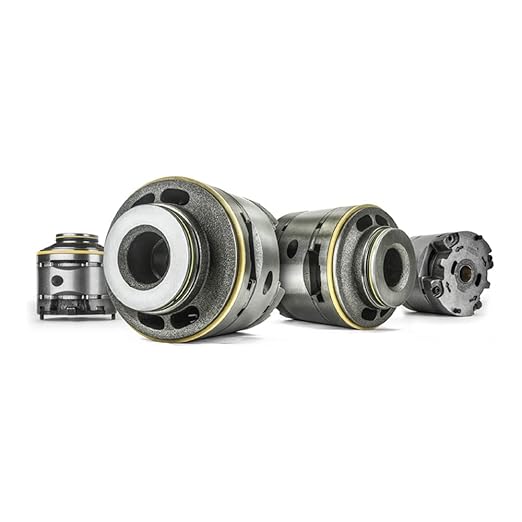

The CTP 1002870 Cartridge is a high-quality, direct replacement component specifically designed for the repair and maintenance of select HP Hydraulic Vane Pumps. As the core rotating element of the pump, the cartridge contains the rotor, vanes, cam ring, and side plates. Replacing the worn cartridge assembly is a cost-effective way to restore your pump's performance, efficiency, and lifespan, avoiding the need for a complete pump replacement.

Engineered to meet stringent quality standards, this cartridge ensures reliable operation and seamless integration with the specified pump models, providing optimal hydraulic power for demanding applications.

Key Features and Advantages

• • Precision Engineered: Manufactured to exact specifications for perfect fit and optimal performance.

• • High-Quality Materials: Constructed from durable materials to withstand high pressures and demanding operating conditions.

• • Restores Pump Efficiency: Replacing a worn cartridge renews flow rates and pressure capabilities to original specifications.

• • Cost-Effective Repair: A more economical solution compared to replacing the entire hydraulic pump.

• • Extended Service Life: Proper maintenance with a new cartridge extends the operational life of your hydraulic system.

Product Specifications

• • Part Number: CTP 1002870

• • Type: Hydraulic Vane Pump Cartridge

• • Compatibility: Designed for specific HP Hydraulic Vane Pump Models

• • Components: Includes Rotor, Vanes, Cam Ring, and Side Plates (typically assembled)

Note: Specific flow rates and pressure ratings are dependent on the overall pump model and system configuration.

Applicable Equipment

This CTP 1002870 Cartridge is suitable for repairing the following HP Hydraulic Vane Pump models:

• • HP Model 970F

• • HP Model R1600

• • HP Model R1600G

• • HP Model R1600H

Ensure you verify your pump model before ordering.

Application Scenarios and Case Analysis

The HP 970F, R1600, R1600G, and R1600H series vane pumps, utilizing cartridges like the CTP 1002870, are commonly found in industrial and mobile hydraulic systems requiring reliable medium to high pressure fluid power.

Common Application Areas:

• • Industrial Presses: Providing the force for stamping, forming, and compacting operations.

• • Injection Molding Machines: Powering clamping, injection, and ejection cycles.

• • Material Handling Equipment: Used in forklifts, lifts, and other lifting/moving machinery.

• • Construction Machinery: Powering auxiliary functions in equipment like excavators, loaders, and cranes.

• • Power Units: Integrated into custom hydraulic power packs for various industrial uses.

Case Analysis Example:

Consider an industrial press using an HP R1600 hydraulic pump. Over time, the pump's performance degrades, leading to slower cycle times and inconsistent pressure. This is often due to wear in the vane pump cartridge. Instead of replacing the entire costly pump, installing a CTP 1002870 cartridge allows the press to regain its original speed and clamping force, significantly reducing downtime and repair costs while extending the life of the hydraulic system.

Related Products

Besides the CTP 1002870 cartridge, other related components and similar products might be relevant for maintaining or repairing hydraulic systems using HP vane pumps or similar equipment:

• • Other Vane Pump Cartridges: Cartridges for different flow rates or series of HP/Parker vane pumps (e.g., other sizes in the R series, or related series). Applicable to various machines requiring specific hydraulic flow/pressure.

• • Seal Kits: Replacement seals for the pump to prevent leaks. Applicable to pumps requiring resealing during maintenance.

• • Hydraulic Filters: Essential for maintaining fluid cleanliness, crucial for pump and cartridge lifespan. Applicable to all hydraulic systems.

• • Replacement Hydraulic Pumps: If the pump housing is damaged beyond repair, a complete replacement pump might be necessary. Applicable when pump repair is not feasible.

Installation and Maintenance Tips

Proper installation and ongoing maintenance are critical for the longevity and performance of the CTP 1002870 cartridge and the hydraulic pump.

Common Issues & Solutions:

• • Issue: Pump Noise/Vibration after installation.
  Solution: Check for proper alignment between the pump and motor, ensure the system is free of air (bleed the system), verify correct fluid type and level.

• • Issue: Reduced Pressure/Flow.
  Solution: Could be due to wear (if it recurs quickly, investigate system contamination or overloading), incorrect cartridge installation (check orientation and proper seating), or issues elsewhere in the hydraulic circuit (valves, actuators).

• • Issue: Leakage.
  Solution: Ensure all seals and O-rings are correctly placed and are not damaged during installation. Check torque specifications for bolts.

• • Issue: Short Cartridge Lifespan.
  Solution: Most often caused by hydraulic fluid contamination. Implement rigorous filtration practices. Also, check for operating conditions exceeding the pump's specifications (pressure, temperature, speed).

Always consult the pump manufacturer's service manual for detailed installation instructions, torque values, and recommended maintenance schedules. Ensure the working environment is clean during installation to prevent contamination.
