Product Overview

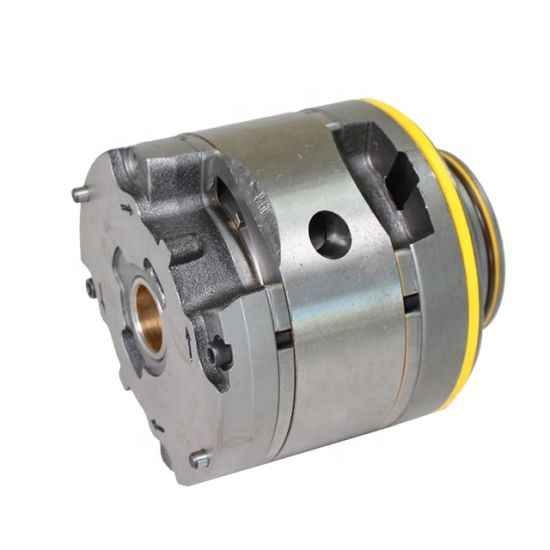

The 3G2834 Hydraulic Vane Pump is a robust and reliable component designed for demanding hydraulic systems. This pump, along with its equivalent part numbers including            3G1267, 3G2746, 7J0566, 7J0565, 3G1269, 1U2667, 3G1266, 3G2835, 3G7651, and 3G1268,            is engineered to provide consistent hydraulic power essential for various heavy-duty applications. Known for their high efficiency and smooth operation, these vane pumps are a critical part of machinery requiring precise and dependable fluid power delivery.

Key Product Parameters

(Note: Specific parameters may vary slightly between equivalent part numbers or manufacturers. The following are typical ranges for this class of hydraulic vane pump):

• Type: Single Vane Pump

• Flow Rate: Typically ranges from 20 GPM to 60 GPM (approx. 75 to 225 L/min) at rated speed.

• Maximum Pressure: Up to 2500 - 3000 PSI (approx. 170 - 205 bar).

• Speed Range: Optimal performance typically between 1000 and 2200 RPM.

• Displacement: Varies, often in the range of 3 to 8 cubic inches per revolution (approx. 50 to 130 cc/rev).

• Mounting Type: Standard SAE flange or specific application mounts.

• Port Sizes: Industry standard inlet and outlet port sizes.

Advantages and Selling Points

• Reliable Performance: Engineered for continuous duty in demanding environments.

• High Efficiency: Provides excellent volumetric and overall efficiency, reducing energy loss.

• Smooth Operation: Vane pump design inherently provides smooth, quiet operation with minimal pulsation.

• Pressure Capability: Capable of generating necessary pressures for heavy equipment hydraulic circuits.

• Compact Design: Relatively compact size for their power output.

• Long Service Life: Durable construction materials ensure longevity with proper maintenance.

• Versatility: Suitable for a wide range of mobile and industrial hydraulic applications.

Applicable Equipment

The 3G2834 and equivalent vane pumps are widely used in heavy machinery and industrial equipment that rely on hydraulic power. Common applications include:

• Excavators: For boom, arm, bucket, and swing functions.

• Wheel Loaders: For lifting, tilting, and steering systems.

• Dozers: For blade lift and tilt control.

• Motor Graders: For blade positioning and steering.

• Skid Steer Loaders: For lifting and auxiliary hydraulics.

• Agricultural Machinery: Tractors, combines, and implements requiring hydraulic power.

• Industrial Power Units: Various stationary hydraulic systems.

Application Scenarios and Case Analysis

These pumps operate in diverse and challenging environments, providing the necessary force and speed for critical operations.

Scenario: Construction Site Excavation

In a large construction project, an excavator equipped with a 3G2834 type vane pump is used for digging and material handling. The pump reliably provides high-pressure flow to the hydraulic cylinders controlling the boom, arm, and bucket.

Case Analysis:

During continuous operation under heavy loads, the vane pump's efficiency ensures minimal heat buildup, contributing to the overall health of the hydraulic system. Its robust construction withstands the vibrations and shocks typical of construction work. The smooth output allows for precise control of the bucket, crucial for delicate tasks like grading or working around underground utilities. Reliability is paramount in such scenarios to avoid costly downtime.

Scenario: Agricultural Field Operation

A tractor utilizing a similar vane pump powers the hydraulic system for lifting and controlling various implements, such as plows, planters, or cultivators.

Case Analysis:

The vane pump's ability to operate efficiently across a range of engine speeds is beneficial in agriculture, where engine RPMs vary depending on the task. The pressure capability is essential for lifting heavy implements. The smooth operation helps in maintaining consistent depth for planting or tilling. Its durability is vital for enduring long hours of operation in dusty and sometimes harsh field conditions.

Related and Similar Products

Based on your application needs, other hydraulic pumps or related components might be suitable:

• Other Vane Pump Sizes/Series: Pumps with different flow rates or pressure ratings (e.g., single, double, or triple vane pumps) for systems with varying hydraulic demands. Applicable to a wider range of machinery sizes and types.

• Gear Pumps: Generally simpler and more economical, suitable for lower pressure and less demanding applications like steering or auxiliary circuits on smaller equipment (e.g., smaller loaders, utility tractors).

• Piston Pumps: Offer the highest pressure capabilities and efficiency, often used in large, high-power systems requiring variable displacement control (e.g., large excavators, large mining equipment, hydrostatic drives).

• Hydraulic Control Valves: Components that direct and regulate the flow of hydraulic fluid from the pump to the actuators. Essential for controlling movement in all applicable equipment.

• Hydraulic Filters and Reservoirs: Crucial for maintaining fluid cleanliness and proper system function, supporting the longevity of the pump and the entire hydraulic circuit in all applications.

Installation and Maintenance - Common Issues and Solutions

Proper installation and regular maintenance are key to maximizing the lifespan and performance of your hydraulic vane pump.

Issue 1: Contamination

Solid particles or water in the hydraulic fluid are major causes of wear and damage to pump internal components (vanes, rotor, cam ring).

Solution:

Use appropriate filters with the correct micron rating for your system and ensure regular filter element replacement. Implement a strict fluid maintenance schedule, including periodic fluid analysis to check for contaminants. Ensure the reservoir is clean and properly sealed.

Issue 2: Cavitation and Aeration

Occurs when the pump inlet pressure is too low, causing air bubbles to form and collapse violently, leading to erosion and noise. Aeration is air mixed into the fluid.

Solution:

Ensure the inlet line is correctly sized, unrestricted, and that the fluid level in the reservoir is adequate. Check for leaks in the inlet plumbing. Use the correct viscosity fluid for the operating temperature. Ensure proper bleeding of air from the system after installation or maintenance.

Issue 3: Incorrect Installation/Alignment

Misalignment between the pump shaft and the drive motor/engine can cause excessive wear on bearings and seals.

Solution:

Follow manufacturer guidelines for mounting and coupling installation precisely. Use appropriate alignment tools. Do not overtighten mounting bolts, which can distort the pump housing.

Issue 4: Overheating

Excessive heat can degrade the hydraulic fluid and damage pump seals and components.

Solution:

Check for system inefficiencies (e.g., relief valves stuck open, excessive pressure drop). Ensure the system's heat exchanger (if present) is functioning correctly and not blocked. Use the correct viscosity hydraulic fluid. Ensure the reservoir is adequately sized for heat dissipation.
