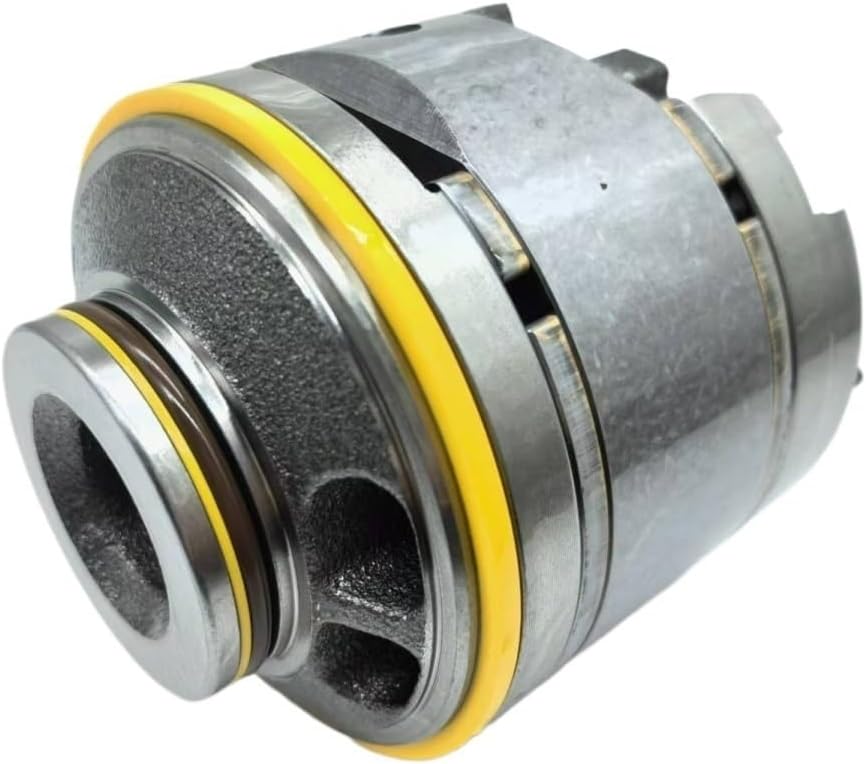

Hydraulic Pump Cartridge 3G-2199 for Caterpillar CAT Engine 3304 Skidder 518

Product Overview

Ensure optimal performance of your heavy machinery's hydraulic system with this high-quality Hydraulic Pump Cartridge, part number 3G-2199. Designed specifically for Caterpillar CAT Engine 3304 and Skidder 518, this cartridge is a critical component responsible for generating the hydraulic power needed for various machine functions.

A reliable hydraulic cartridge is essential for maintaining the efficiency and responsiveness of your equipment's hydraulic circuits, impacting steering, lifting, clamping, and other vital operations in demanding work environments.

Product Parameters

• Part Number: 3G-2199

• Type: Hydraulic Pump Cartridge

• Compatibility: Caterpillar CAT Engine 3304, Skidder 518

• Material: High-grade wear-resistant materials

• Function: Converts mechanical energy into hydraulic energy

• Application: Hydraulic pump system

Product Advantages & Selling Points

• Exact Fit: Engineered to precise specifications for seamless integration with CAT 3304 engines and 518 Skidders.

• Durability: Constructed from robust materials to withstand high pressures and demanding operational conditions, ensuring a longer lifespan.

• Optimized Performance: Restores or maintains peak hydraulic system efficiency, providing consistent power and responsiveness.

• Reliability: Reduces the risk of hydraulic system failure, minimizing downtime and maintenance costs.

• Cost-Effective: A reliable replacement part that offers excellent value compared to full pump replacement.

Applicable Equipment

This hydraulic pump cartridge (3G-2199) is specifically designed for use with:

• Caterpillar CAT Engine 3304

• Caterpillar Skidder 518

Application Scenarios & Case Analysis

The Caterpillar Skidder 518, powered by the CAT 3304 Engine, is a powerhouse commonly used in logging and forestry operations. Its primary function is to pull felled trees from the cutting site to a landing area. This requires a robust hydraulic system to power the grapple or winch, steering, and blade.

Scenario: Logging Operation
           In a typical logging site, the Skidder 518 navigates rough terrain, often uphill or downhill, while dragging heavy loads of logs. The hydraulic system is constantly under stress, requiring precise control and significant power to operate the grapple for securing logs and maneuvering them. A worn or faulty hydraulic pump cartridge (3G-2199) would lead to reduced grapple strength, slow response times, or complete loss of hydraulic function, halting operations.

Case Analysis: Impact of Cartridge Failure
           Consider a logging company relying on a fleet of 518 Skidders. If a hydraulic pump cartridge fails, that machine is down. Downtime in logging is expensive, leading to lost productivity and missed deadlines. Replacing the faulty cartridge with a high-quality 3G-2199 restores the hydraulic system's integrity. This allows the Skidder to operate at its designed capacity, efficiently moving logs and ensuring the logging schedule stays on track. The ability of the cartridge to withstand high working pressures in harsh environments is crucial for continuous operation.

Related Products

Customers interested in the 3G-2199 cartridge may also require other related hydraulic components for maintaining their equipment:

• Hydraulic Filters: Essential for keeping the hydraulic fluid clean and preventing contamination that can damage pump cartridges and other components. (Applicable to CAT 3304 Engine, Skidder 518)

• Seal Kits: For replacing worn seals in the hydraulic pump or cylinders to prevent leaks and maintain pressure. (Applicable to Skidder 518 Hydraulic System)

• Hydraulic Hoses and Fittings: For connecting components within the hydraulic circuit. (Applicable to Skidder 518 Hydraulic System)

• Hydraulic Control Valves: Components that direct the flow of hydraulic fluid to different actuators. (Applicable to Skidder 518 Hydraulic System)

Installation & Maintenance: Common Issues and Solutions

Proper installation and regular maintenance are key to maximizing the lifespan of your 3G-2199 cartridge and the entire hydraulic system.

• Issue: Contaminated Hydraulic Fluid.
                 Problem: Abrasive particles in the fluid cause wear on the cartridge components, leading to reduced efficiency and eventual failure.
                 Solution: Always use clean, filtered hydraulic fluid. Replace hydraulic filters regularly according to the manufacturer's recommendations. Ensure the system is flushed before installing a new cartridge if contamination is suspected.

• Issue: Air in the Hydraulic System (Aeration/Cavitation).
                 Problem: Air bubbles in the fluid can cause noise, erratic operation, and damage to the pump cartridge due to cavitation erosion.
                 Solution: Properly bleed the hydraulic system after installation to remove trapped air. Check for leaks on the suction side of the pump, as these can draw air into the system.

• Issue: Incorrect Installation.
                 Problem: Misalignment, improper torque on bolts, or damaged seals during installation can lead to leaks, reduced performance, or premature failure.
                 Solution: Follow the equipment service manual for the correct installation procedure. Ensure surfaces are clean, seals are properly seated and lubricated, and bolts are torqued to the specified values.

• Issue: Operating Beyond System Specifications.
                 Problem: Continuously operating the hydraulic system at pressures or temperatures exceeding its design limits will shorten the life of the cartridge and other components.
                 Solution: Ensure system relief valves are set correctly. Avoid overloading the equipment beyond its rated capacity. Monitor system temperature and pressure.

Regular inspections of hydraulic lines, fittings, and fluid levels are also crucial preventative maintenance steps.
