Product Overview

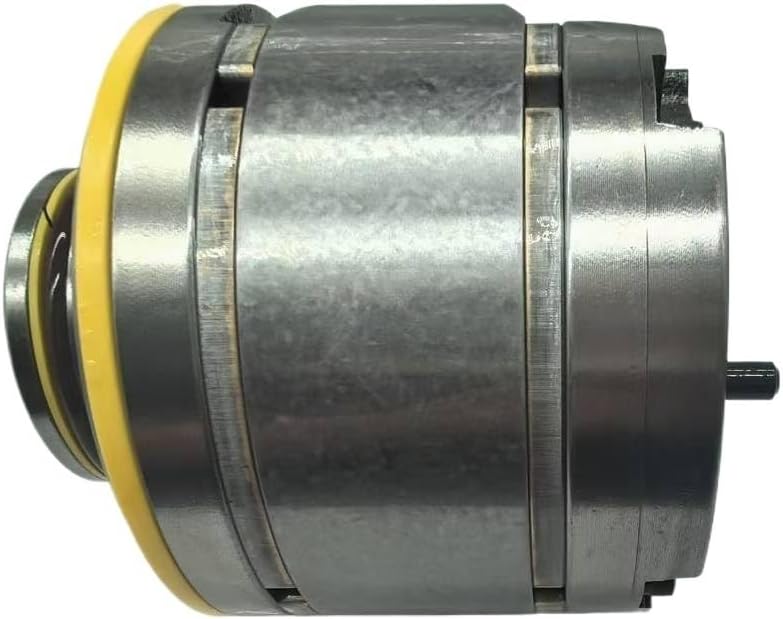

The HpaErtsP 3G2243 (3G-2243) 35 Gallon Hydraulic Vane Pump Cartridge GP is a high-performance replacement component specifically engineered for Caterpillar CAT 225 excavators. This cartridge group is the heart of the hydraulic vane pump, ensuring efficient and reliable power delivery to your heavy machinery. Designed as a direct aftermarket replacement, it meets stringent specifications to provide optimal performance and durability in demanding operational environments.

Applicable Equipment and Application Scenarios

Primary Application:

• Caterpillar CAT 225 Excavators: This hydraulic vane pump cartridge is specifically designed for the hydraulic systems of CAT 225 excavators, ensuring efficient operation for various tasks.

Application Scenarios for CAT 225 Excavators:

The Caterpillar CAT 225 excavator, powered by reliable hydraulic components like this vane pump cartridge, is a versatile machine indispensable across numerous heavy-duty applications:

• Construction Projects: Ideal for general excavation, trenching, foundation digging, and site preparation in residential, commercial, and industrial construction.

• Material Handling: Efficiently loads and unloads various materials such as dirt, gravel, sand, and debris onto trucks or into stockpiles.

• Demolition Work: Capable of precise and powerful demolition tasks, especially with appropriate attachments like hydraulic hammers.

• Mining and Quarrying: Handles demanding tasks in mining environments, including rock scraping and material extraction.

• Road Building: Used for creating and maintaining infrastructure, including grading, digging drainage, and preparing roadbeds.

• Landscaping and Earthmoving: Excellent for large-scale landscaping projects, shaping terrain, and general earthmoving operations.

Case Study Example:

Historically, the Caterpillar CAT 225 excavator played a significant role in major infrastructure projects. For instance, many CAT 225 units were extensively utilized in the construction of the New Plymouth to Auckland gas pipeline during the mid-1970s. This highlights the machine's capability to perform reliably and efficiently in large-scale, demanding pipeline construction, involving extensive trenching and earthmoving across varied terrains.

Related and Similar Products

Beyond the 3G2243, HpaErtsP and other manufacturers offer a range of hydraulic vane pump cartridges and components compatible with various Caterpillar models. These similar products ensure comprehensive coverage for different hydraulic system requirements.

• Other Vane Pump Cartridge Series: Including 20VQ, 25VQ, 45VQ series, offering different displacement volumes (GPM) to suit diverse hydraulic flow requirements.

• Related Part Numbers: Such as 3G-2237, 3G-2235, 3G1266, 1U2666, 1U2667, 1U2668, 1U2669, 1U2670, 1U2671, 1U3519, 1U3952, 1U3953, 3G1267, 3G2195, and many others, which are designed for various Caterpillar machines.

• Applicable Equipment for Similar Vane Pump Cartridges: These cartridges are found in a broad spectrum of Caterpillar equipment, including:

• Wheel Loaders: e.g., CAT 966C, 966, 922B, 970F, 960F, 924F, 928F, 966G, 972G, 926, 926A, G926, IT18B, IT28, IT28B

• Tractors: e.g., CAT 623B, 633D, 631C, 637, 633C, 639D

• Engines: e.g., CAT 3306, 3406, 3408, 3408C, 3408E, D346

• Other Heavy Equipment: e.g., CAT 518C, 815F, 815F II, R1600, R1600G, R1600H, 824C, 825C, D8L, D9N, 772, 773, 992, 943, 815B, 973, 183B, 844, 844H, 844K, 950, 963, 163, 594H, 613G, D350E, D35HP, D400, D400E, D40D, 768B, 769, 814, 814S, 815, 816, 930R.

Installation and Maintenance: Common Issues & Solutions

Proper installation and regular maintenance are crucial for the longevity and optimal performance of hydraulic vane pumps. Here are common issues and their solutions:

Common Issues:

• Pump Does Not Draw Fluid (Priming Issues): Often due to low fluid level, air ingress in suction line, clogged filters, or worn/partially closed valves.

• Reduced Flow & Pressure: Can result from low pump speed, restricted suction or discharge lines, worn vanes, or issues with the relief valve.

• Noisy Pump: Indicates problems like low inlet pressure, high pump speed, cavitation (sounds like marbles inside), or internal wear.

• Shaft Seal Leakage: Visual clue is fluid dripping from the pump's front, potentially caused by bearing failure, hardened seals, or external contamination damaging the seal.

• Cycled Overpressurization: May be due to blockages (clogged filter, valve, pipe) or incorrect relief valve settings.

• Hydraulic Fluid Contamination: A major cause of failure due to abrasive particles, water, or chemicals leading to increased wear on internal components.

• Overheating: Can cause hydraulic fluid breakdown, accelerate wear on vanes and seals, and lead to premature pump failure.

• Loose Fasteners: Can cause vanes to float, leading to accelerated wear.

Solutions and Maintenance Tips:

• Regular Fluid Monitoring: Consistently check hydraulic fluid levels and quality. Ensure clean, recommended fluids are used, and implement effective filtration systems to prevent contamination.

• Routine Inspections: Perform regular visual checks for signs of wear, damage, or leaks (e.g., around joins, pipes, couplings, shaft). Listen for unusual noises.

• Filter Maintenance: Clean or replace filters regularly to prevent debris from obstructing flow and damaging pump components.

• Maintain Proper Temperature Control: Ensure the hydraulic system operates within recommended temperature ranges (ideally below 140°F) using appropriate cooling mechanisms to prevent fluid degradation and seal hardening.

• Check Fastener Tightness: Periodically inspect and tighten all fasteners around the pump to ensure proper mounting and prevent wear.

• Monitor System Pressure: Closely monitor pressure levels to avoid undue stress on internal parts. Ensure relief valves are correctly set and functioning.

• Verify Direction of Rotation: When installing a new pump or cartridge, confirm the shaft rotates in the correct direction as indicated by the manufacturer.

• Address Cavitation: Ensure adequate oil level, properly sized reservoir, proper sealing, and clear suction lines. Avoid running the system over recommended RPM.

• Professional Training: Ensure maintenance personnel are adequately trained on the operating principles, procedures, and safety protocols specific to hydraulic vane pumps.
