Product Overview

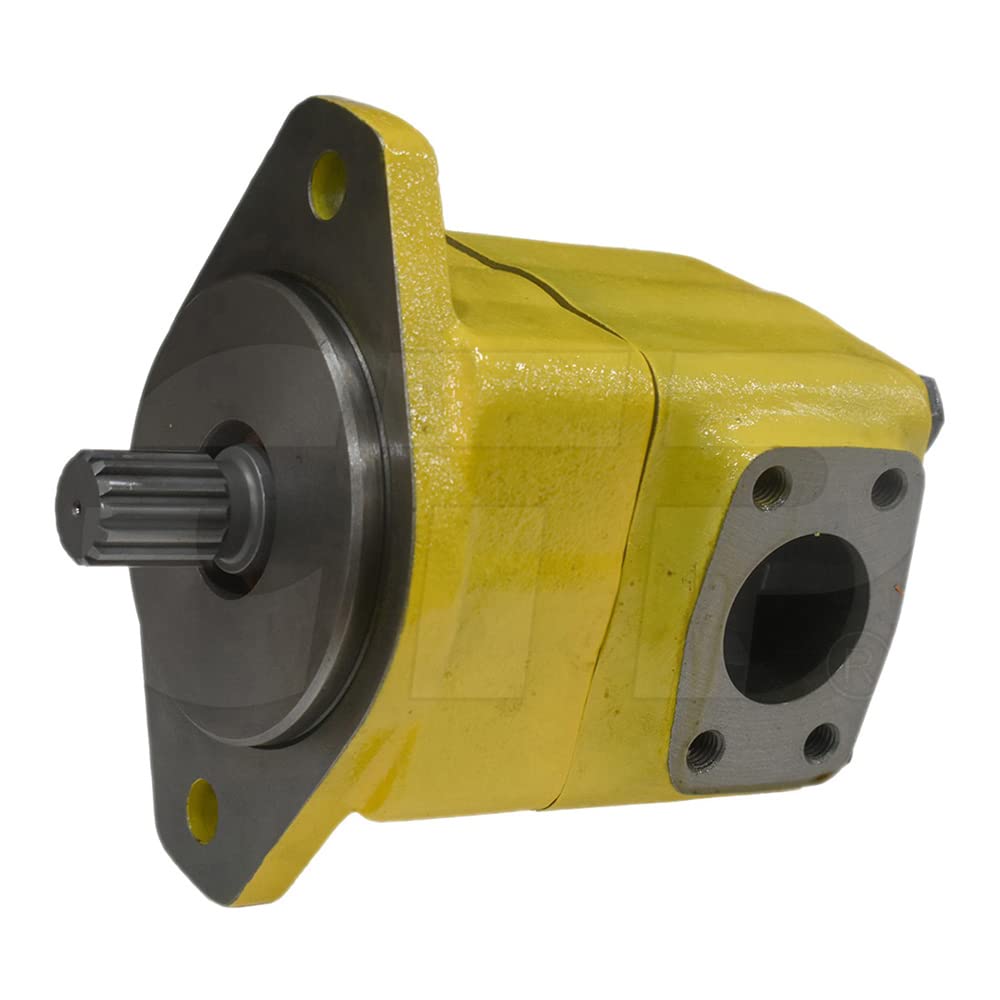

The CTP 9T0486 Hydraulic Vane Pump G is a high-quality replacement component specifically designed for the Caterpillar 963 Loader. Engineered and manufactured by Costex Tractor Parts (CTP), a globally recognized supplier of new replacement Caterpillar parts, this hydraulic vane pump is built to ensure optimal machine performance, reliability, and durability in demanding operational environments.

Vane pumps are a type of positive displacement pump known for their efficiency and consistent fluid delivery. The CTP 9T0486 is a testament to this, offering smooth and continuous hydraulic power essential for various heavy equipment applications.

Key Product Parameters

• •Model Number: 9T0486

• •Type: Hydraulic Vane Pump G

• •Applicable Equipment: Caterpillar 963 Loader

• •Package Dimensions: Approximately 18 x 18 x 12 inches (45.7 x 45.7 x 30.5 cm)

• •Item Weight: Approximately 50.5 pounds (22.9 kg)

• •Manufacturer: Costex Tractor Parts (CTP)

Product Advantages and Selling Points

• •Superior Efficiency: Designed for high volumetric efficiency, potentially reaching up to 90%, leading to reduced energy consumption and operational costs.

• •Seamless Integration: Features an "easy in-and-out fit," ensuring straightforward installation and minimal downtime.

• •Robust Reliability: Manufactured and tested to stringent quality performance requirements, guaranteeing specific machine performance, durability, and long operational life.

• •Quiet Operation: Vane pumps are generally quieter compared to piston and gear pumps, contributing to a more comfortable working environment.

• •Fluid Versatility: Suitable for a wide range of fluids, including various oils and petroleum products, and can even operate dry for short periods without significant damage.

• •Self-Compensating Design: Vanes are designed to self-compensate for wear over time, maintaining efficiency and consistent performance throughout the pump's lifespan.

• •Consistent Flow: Provides a smooth and continuous flow of hydraulic fluid, vital for pressure-operated applications.

Applicable Equipment and Application Scenarios

The CTP 9T0486 Hydraulic Vane Pump G is primarily designed for the Caterpillar 963 Loader. This specific model of loader is commonly used in various heavy-duty applications, including:

• •Construction: Earthmoving, loading, and material handling in construction sites.

• •Mining: Loading and transporting aggregates, coal, and other excavated materials.

• •Waste Management: Handling and compacting waste in landfills and recycling centers.

• •Quarrying: Extracting and loading raw materials from quarries.

• •Road Building: Assisting in the movement of materials for road construction.

Broader Vane Pump Applications:

Beyond the Caterpillar 963 Loader, hydraulic vane pumps like the 9T0486 are integral to numerous other industrial and mobile applications. Their ability to handle various fluids and provide consistent, efficient power makes them suitable for:

• •Automotive Industry: Power steering, automatic transmission systems, and fuel injection.

• •Chemical Industry: Transfer of acids, solvents, and aqueous solutions.

• •Fuel Handling Systems: Efficient and safe pumping of low-viscosity fluids like petrol, diesel, and kerosene.

• •HVAC Systems: Handling refrigerants in heating, ventilation, and air conditioning units.

• •Medical and Laboratory: Applications requiring precise vacuum control, such as freeze-drying and analytical instruments.

• •Food Processing: Used in vacuum packaging to extend product shelf life.

• •Electronics Manufacturing: Critical for producing semiconductors and electronic components via vacuum deposition.

Related and Similar Products

CTP offers a comprehensive range of hydraulic components and replacement parts for various heavy equipment. Customers interested in the 9T0486 Hydraulic Vane Pump G may also find the following CTP products relevant:

• •Other CTP Hydraulic Pumps: Including gear pumps, piston pumps, and various pump groups such as 4T0509 PUMP G, 1P2187 PUMP G. GEAR, 4T2506 PUMP G.PISTON, and 1U1779 PUMP G. GEAR. These are used in different hydraulic systems requiring specific flow rates and pressures for diverse machinery.

• •CTP Vane Pump Assemblies: Such as 9T0436 PUMP G and 9T1763 VANE PUMP, which may serve different Caterpillar models or applications.

• •Hydraulic System Components: Seal kits, vanes, rotors, shafts, housings, and casings – essential for maintaining and repairing hydraulic pumps.

• •Fuel and Oil Pumps: CTP also provides fuel pumps (e.g., 3N2078 FUEL PUMP) and oil pumps (e.g., 1P4231 OIL PUMP) for various engine and lubrication systems in heavy machinery.

Common Installation Issues and Solutions

Proper installation and maintenance are crucial for the optimal performance and longevity of hydraulic vane pumps. Here are common issues encountered during installation and their solutions:

• •Pump Does Not Draw Fluid (Loss of Prime):

  Causes: Low fluid level, worn or partially closed valves, air ingress in connections, blocked filter, suction restrictions, steam blockage, low pump speed, or relief valve issues.

  Solutions: Ensure correct fluid level in the reservoir, verify all inlet valves are fully open, check pipe connections for air leaks and properly seal them, clean or replace filters, reduce pump speed if too high, verify relief valve settings, and ensure fluid is free from water/steam.

• •Reduced Flow & Pressure:

  Causes: Low pump speed, restricted suction or discharge lines, pump wear (e.g., worn vanes), incorrect vane installation, or improper direction of rotation.

  Solutions: Verify pump speed settings, check for any blockages in suction and discharge pipework, inspect vanes for wear and ensure they are installed correctly and facing the right way, confirm the pump's direction of rotation matches system requirements.

• •Noisy Pump (Cavitation/Aeration):

  Causes: Low inlet pressure, high pump speed, pump located too far from the fluid source, blocked outlet, loose pump mounting, worn internal components (bearings, vanes), shaft misalignment, or air trapped in the system.

  Solutions: Maintain adequate fluid level, ensure pump operational parameters are within design limits, move the pump closer to the fluid source if feasible, remove any blockages, secure the pump to its baseplate, replace worn parts, ensure proper alignment, and bleed the system to remove air pockets.

• •Leakage:

  Causes: O-ring failure (due to age, abrasion, or fluid incompatibility), shaft wear/damage, excessive lubrication, cavitation, or particle ingress damaging mechanical seals.

  Solutions: Regularly inspect and replace O-rings with compatible materials, replace worn or damaged shafts, ensure proper lubrication levels, address cavitation issues, and maintain clean hydraulic fluid to prevent particle damage to seals.

• •Overheating:

  Causes: Low reservoir fluid levels, obstructions in reservoir airflow, blocked heat exchanger core, internal leaks, or cavitation.

  Solutions: Maintain optimal fluid levels, ensure clear airflow around the reservoir, clean heat exchanger cores regularly, diagnose and repair internal leaks, and address any cavitation issues.
