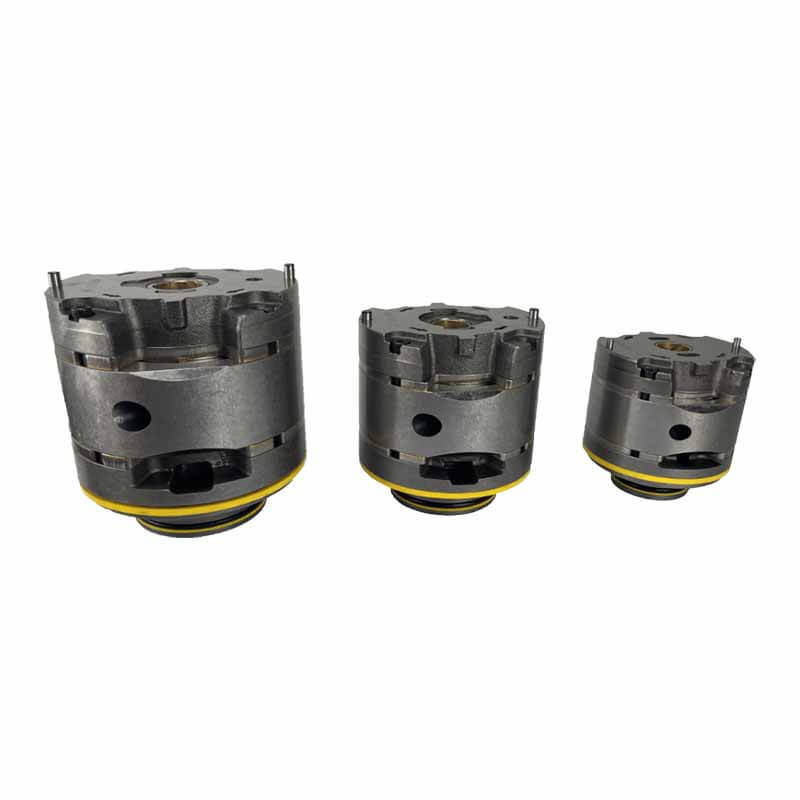

Hydraulic Pump Cartridge 3G-1269 for Caterpillar CAT Engine 3304 3306 Truck 773 D25C D25D D30C D350C D35C

Product Introduction

This is a premium replacement Hydraulic Pump Cartridge, specifically designed as an OEM equivalent for Caterpillar part number 3G-1269. Essential for maintaining the optimal performance of your hydraulic system, this cartridge is a critical component within the hydraulic pump assembly. It ensures reliable fluid flow and pressure, vital for the operation of various heavy-duty CAT machinery.

Product Parameters

• Part Number: 3G-1269

• Type: Hydraulic Pump Cartridge

• Compatibility: Direct replacement for CAT 3G-1269

• Material: High-strength, wear-resistant materials for durability (typically steel and composite elements)

• Function: Generates hydraulic flow and pressure within the pump

Product Advantages & Selling Points

• OEM Quality Match: Engineered to meet or exceed original equipment manufacturer specifications for performance and fit.

• Restores Performance: Replacing a worn cartridge revitalizes your hydraulic pump, restoring original operating pressure and flow rates.

• Cost-Effective Solution: Often a more economical repair than replacing the entire hydraulic pump assembly.

• Durable Construction: Built with robust materials to withstand demanding operating conditions and extend service life.

• Precise Fit: Manufactured for a perfect fit within the compatible pump housing, ensuring easy installation and reliable sealing.

Applicable Equipment

This hydraulic pump cartridge 3G-1269 is specifically compatible with the hydraulic systems found on the following Caterpillar equipment:

• Caterpillar Engine 3304

• Caterpillar Engine 3306

• Caterpillar Truck 773

• Caterpillar Truck D25C

• Caterpillar Truck D25D

• Caterpillar Truck D30C

• Caterpillar Truck D350C

• Caterpillar Truck D35C

Application Scenarios & Case Analysis

The Caterpillar equipment listed above operates in demanding environments where robust and reliable hydraulics are crucial. The 3G-1269 cartridge plays a vital role in these applications:

• Truck 773 (Mining/Quarrying): Used as off-highway dump trucks, the 773 relies heavily on its hydraulic system for steering, braking, and especially the massive hoist mechanism that lifts the bed to dump material.

  Case Analysis: A mine reported slow and erratic dumping cycles on a 773 truck. Diagnostics showed low hydraulic pressure from the main pump. Replacing the worn 3G-1269 cartridge within the pump immediately restored full pressure and speed to the hoist, drastically reducing cycle times and improving site productivity.

• D-Series Trucks (D25C, D25D, D30C, D350C, D35C - Construction/Earthmoving): These articulated dump trucks (ADTs) are used for hauling material over rough, uneven terrain on construction sites, infrastructure projects, and sometimes smaller mining operations. Hydraulics control steering (especially articulated steering), braking, suspension (on some models), and the dump body.

  Case Analysis: An ADT on a highway construction project developed sluggish and heavy steering, making it difficult to maneuver in tight areas and on inclines. Investigation found that the hydraulic pump responsible for steering assistance was underperforming due to a worn cartridge. Replacing the 3G-1269 component restored light, responsive steering control, enhancing operator safety and allowing the truck to efficiently navigate the challenging site conditions.

In both scenarios, a failing hydraulic pump cartridge directly impacts machine performance, safety, and operational efficiency. Replacing the 3G-1269 cartridge is a targeted repair that can restore critical hydraulic functions without the higher cost of a full pump replacement.

Related & Similar Products

While the 3G-1269 is specific, customers may also need other hydraulic components or cartridges for different applications or repairs:

• Other Hydraulic Pump Cartridges: Various part numbers exist for different pump models found on a wide range of Caterpillar excavators, loaders, dozers, and other trucks. (e.g., cartridges for gear pumps, vane pumps, piston pumps)

• Hydraulic Pump Seal Kits: Essential for repairing leaks and maintaining pressure in existing pumps, often replaced when changing a cartridge. Applicable to many CAT hydraulic pumps.

• Complete Hydraulic Pumps: When a pump is beyond cartridge replacement or has extensive housing damage, a full pump assembly might be needed. Available for numerous CAT models and systems (main hydraulics, steering, brake, etc.).

Please contact us with your specific machine model and serial number to find the correct hydraulic components for your needs.

Installation & Maintenance Troubleshooting

Proper installation and maintenance are key to the longevity of your hydraulic pump cartridge. Here are some common issues and their solutions:

• Issue: Hydraulic System Leaks After Cartridge Replacement

• Solution: Ensure all seals and O-rings were replaced and correctly seated during installation. Check torque specifications for bolts holding the pump/cartridge assembly together. Inspect mating surfaces for damage or debris.

• Issue: Low or Erratic Hydraulic Pressure/Flow

• Solution: Verify the correct cartridge was installed. Check the hydraulic fluid level and condition (is it contaminated?). Ensure the system is properly bled of air (cavitation). Inspect suction lines and filters for blockages. The pressure relief valve might also need checking.

• Issue: Short Cartridge Lifespan

• Solution: Hydraulic fluid contamination is a major cause of premature wear. Ensure regular fluid and filter changes using the manufacturer-recommended specifications. Check the system for signs of overheating, which can break down the fluid.

• Issue: Pump Noise (Whining/Grinding)

• Solution: Often indicates air in the system (cavitation) or contamination. Ensure proper bleeding. Check suction line for leaks or restrictions. If the noise persists after ensuring no air/contamination, the pump or cartridge might be damaged.

Always refer to the specific Caterpillar service manual for detailed installation instructions and torque values.
